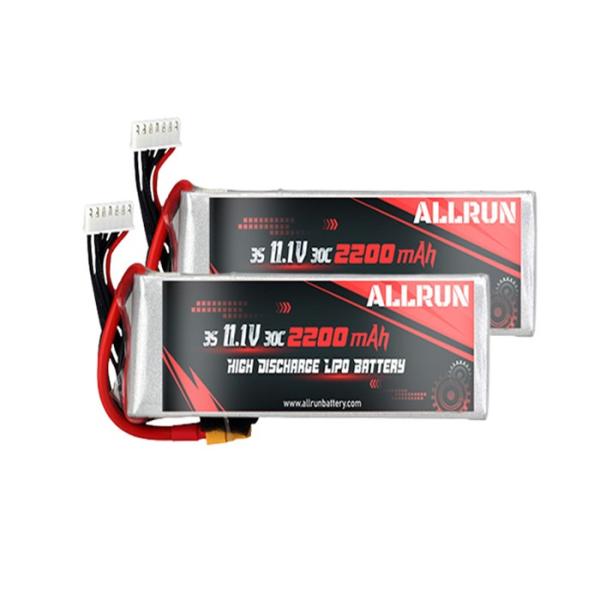

    3S1P 30C High Discharge LiPo Battery 11.1V 2200mAh For RC Aircraft

    11.1V 2200mAh 30C 3S1P High C-rate LiPo Battery for RC Aircraft


    Welcome to Allrun high discharge(C-rate) lipo battery section, they are widely used in various fields, such as model aircraft ( RC ), medical equipment, drones for aerial and agricultural plant protection purposes, emergency power supplies, power tools, and so on.


    The high rate discharge lithium polymer battery represents the charge and discharge capacity of lithium polymer batteries relative to the standard rate discharge lithium polymer battery. A lithium-polymer battery is normally measured using a "C" value to represent its charge and discharge current ratio. Batteries with a C-rate number higher than 1 are considered high-rate batteries. The larger the C-rate number of a li-polymer battery, the higher the rate of the li-polymer battery.


    Datasheet


    Item11.1V 2200mAh 30C 3S1P High C-rate LiPo Battery for RC Aircraft
    Battery TypeLithium Polymer Battery
    Capacity2200mAh
    Normal Voltage11.1V
    Thickness25mm MAX
    Width28mm MAX
    Length110mm MAX
    Charge Cut-off Voltage12.6V
    Discharge Cut-off Voltage9.0V
    Standard Charge Current1100mA (0.5C)
    Max Charge Current2200mA (1C)
    Max Continuous Discharge Current66A (30C)
    Pulse Discharge Current132A ( for 2 seconds )
    ConnectorTBD

    Safety Notes of High C-rate LiPo Battery

    1. Avoid using lead-acid, NiCd, or NiMH chargers.
    2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
    3. Charge and use should never be left unattended.
    4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
    5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
